Visualise the largest rank changes — ggrank

Creates a diverging bar chart answering "Who moved the most?" Positive values rose towards rank one; negative values fell away from rank one. Raw data are processed by ggrank_table(), preserving one ranking engine.

Usage

ggrank_change(
  data,
  category = NULL,
  period = NULL,
  value = NULL,
  rank = NULL,
  label = NULL,
  group = NULL,
  periods = NULL,
  top = 15,
  top_n = 10,
  direction = c("descending", "ascending"),
  ties = c("min", "dense", "first"),
  check_rank = TRUE,
  comparison = c("latest", "all"),
  from = NULL,
  to = NULL,
  show_stable = FALSE,
  change_label = c("change", "ranks", "none"),
  label_wrap = 30,
  palette = c(riser = "#0072B2", faller = "#D55E00", stable = "#667085"),
  legend_title = NULL,
  legend_labels = NULL,
  show_legend = TRUE,
  base_size = 11,
  title = NULL,
  subtitle = NULL
)

Arguments

data: Raw data or a rank-change table returned by ggrank_table().
category, period: Unquoted columns used with raw data.
value: Optional numeric value column. It may be omitted when rank is supplied.
rank, label, group: Optional unquoted columns used with raw data.
periods: Optional vector selecting and ordering two to four periods.
top: Maximum categories displayed per comparison, selected by abs(rank_change). This is not top risers plus top fallers.
top_n: Top-rank boundary used to classify entrants and exits with raw data. It does not control the number of bars; top does.
direction, ties, check_rank: Ranking options passed to ggrank_table().
comparison: Display the latest consecutive comparison (default) or all comparisons. Ignored when from and to are supplied.
from, to: Optional explicit comparison. Both must be supplied and the pair must already exist in the rank-change table.
show_stable: Include unchanged categories. The default excludes them.
change_label: Show signed change ("change"), detailed ranks such as "7 -> 3 (+4)" ("ranks"), or no bar-end label ("none").
label_wrap: Approximate characters per category-label line.
palette: Named colours for riser, faller, and stable.
legend_title: Optional legend title.
legend_labels: Optional named labels for displayed movements.
show_legend: Show the movement legend.
base_size: Base text size.
title, subtitle: Optional text overriding informative defaults. Use subtitle = "" to suppress the default subtitle.

Value

A ggplot object whose data retain the underlying table status.

Examples

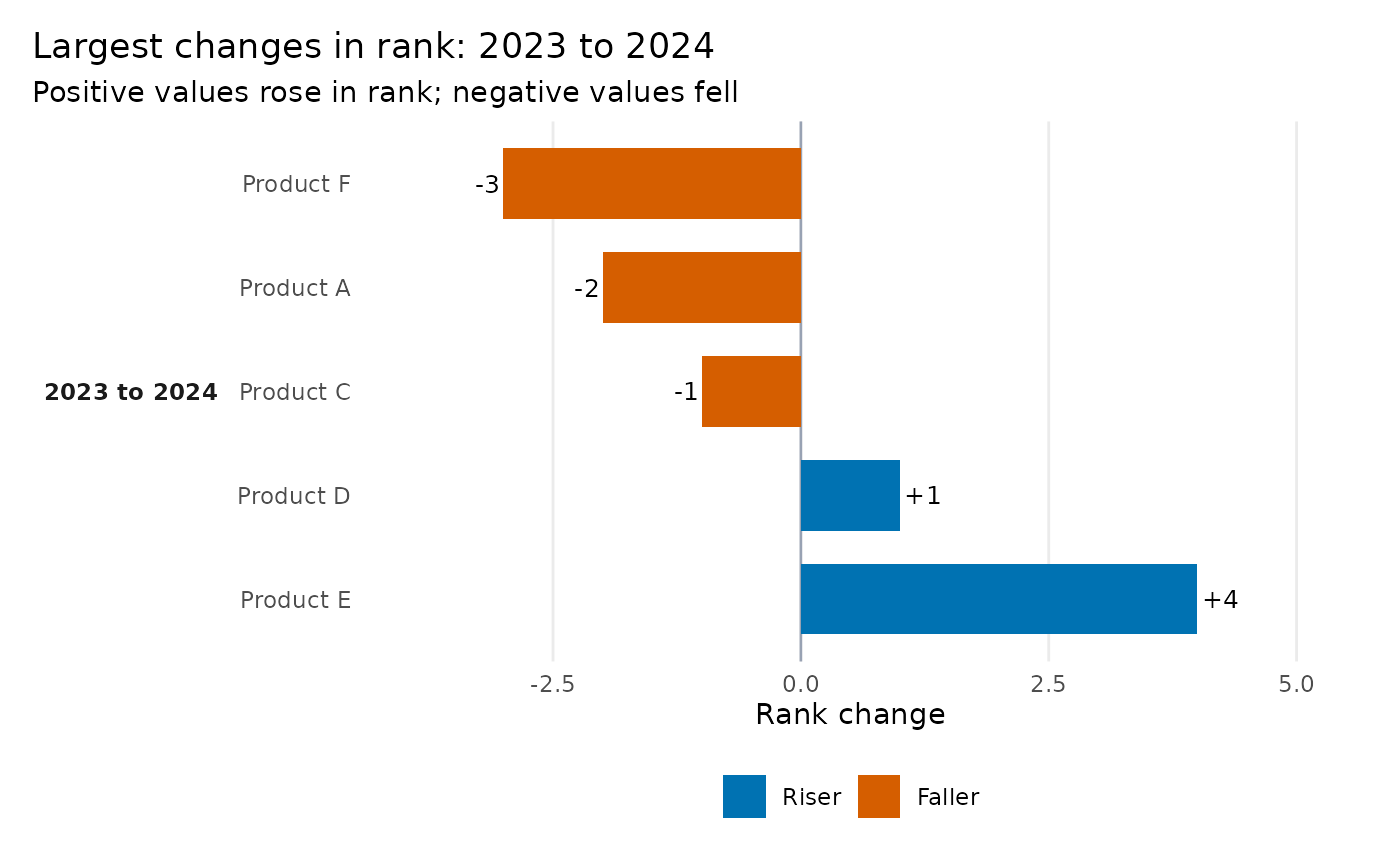

ggrank_change(ggrank_products, product, year, sales, top = 5)


changes <- ggrank_table(
  ggrank_products, product, year, sales,
  top_n = 5, show_transitions = "all"
)

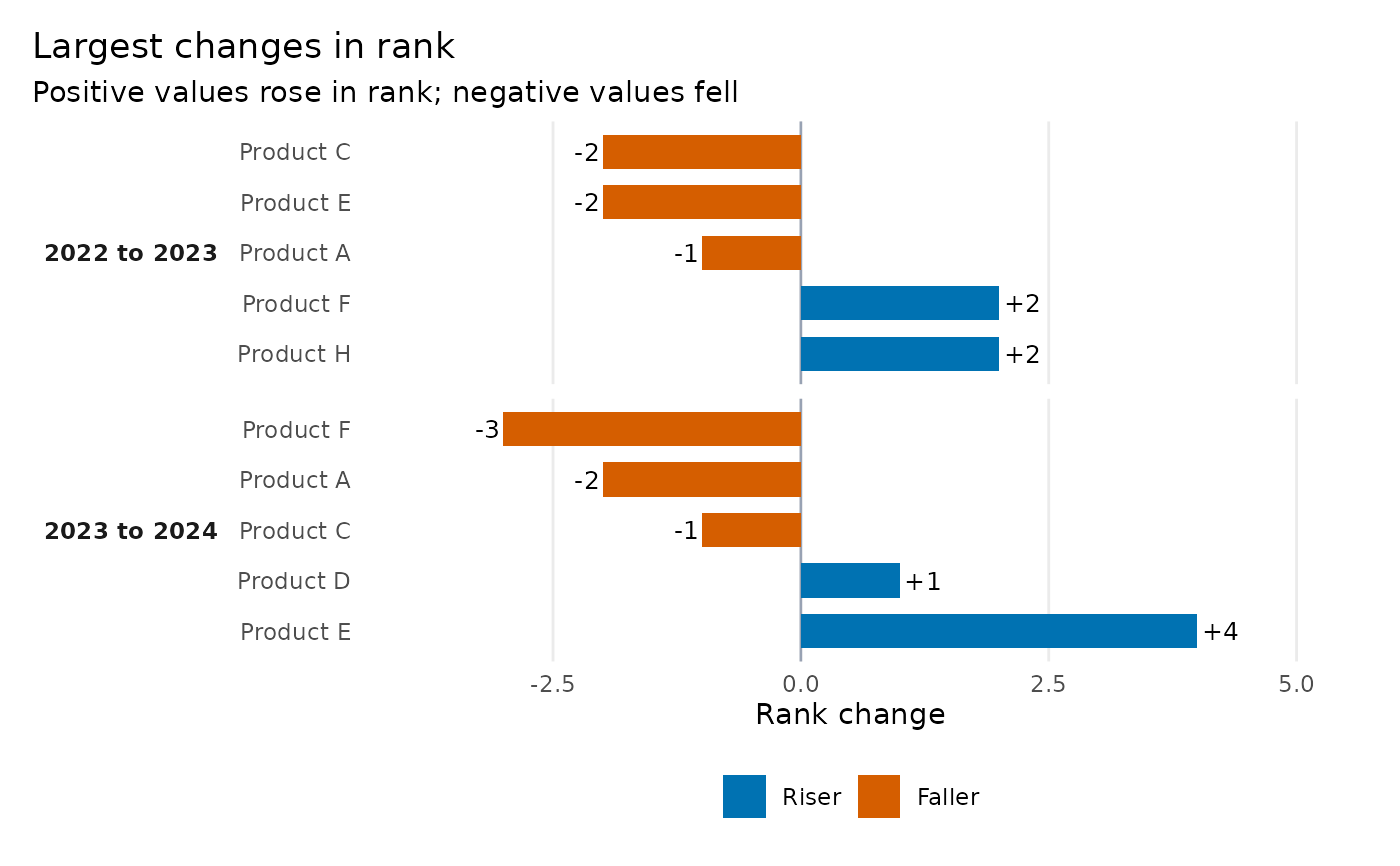

ggrank_change(changes, top = 5, comparison = "all")
